PHENOLIC FOAM FOR WALL INSULATION

• PRODUCT INFORMATION

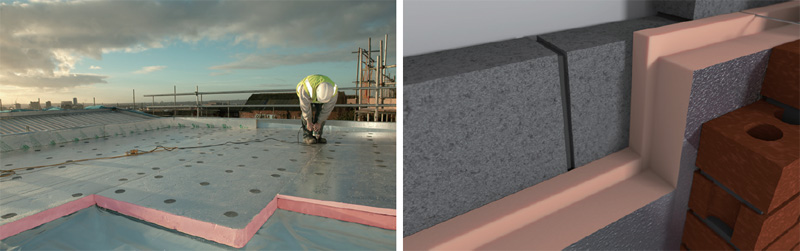

Phenolic foam for Framing Board is a rigid insulation board used for timber and steel framing systems, consisting of a rigid thermoset modified resin insulation core, covered with low emissivity composite foil on both sides, improving thermal resistance in adjacent unventilated cavities. The product is manufactured with a 0 ODP and low GWP blowing agent, which makes it very ecofriendly.
It could be used to control potential condensation problems, especially if combined with a vapor-resistant layer placed on the warm side of the insulation. It is easily cut by using a sharp knife or a toothed saw, always taking care of accurate trimming. It is best kept in indoor conditions and when stored outdoors it must be properly covered and protected by using polythene sheet, for instance, in order of keeping it dry. The product is completely safe to use and will not endanger your health.



• FEATURES
• Safe and easy to handle and install.
• Water vapor resistant.
• The core is Class 0 fire rated.
• Non-deleterious.
• Very durable, depending on the structure and conditions of use.
• Mold and microbial growth resistant.
• Unaffected by air filtration.
• High performance thermoset rigid insulation.
• Applicable in both new build and refurbishment projects.
• Environmentally friendly, with 0 ODP and low GWP.

TECHNICAL DETAILS
Length
1000mm(other length are available)
Width
1200mm/600mm
Thickness range
60/70/80/90/100/110/120/130mm
Panel surface
Both side embossed aluminum foil or bare
Aluminum foil thickness
80/80 micron, 60/60 micron
Density
40-80 kg/m3(other density are available)
Thermal conductivity
0.021~0.030 W/(MK)
Water Absorption Rate
1.9%
Dimension Change Rate
0.3%
Working Temperature
-100C to 150C
Combustion performance
Class 0 (BS476 Part 6 and 7), Class A (ASTM E84)
