Product
PHENOLIC FOAM FOR AIR DUCT

• PRODUCT INFORMATION
Phenolic foam material is a organic polymer rigid foam product, which is a closed-cell type rigid foam made of phenolic resin and flame retardant,foaming agent, curing agent and other additives. Phenolic foam is known as the king of insulation because of its low thermal conductivity, heat preservation and fire resistance.

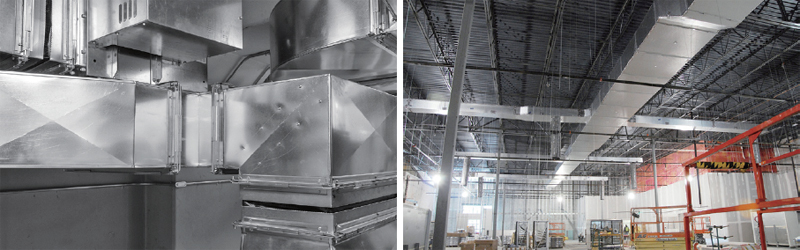

Phenolic foam is the most promising new type of thermal insulation material in the internationally recognized construction industry. Because this material not only has low thermal conductivity,good thermal insulation performance, but also has flame retardancy, good thermal stability,light weight and low smoke. Heat resistance, high mechanical strength, strong sound insulation,strong chemical resistance, good weather resistance, etc., first applied to aerospace, defense engineering, and later widely used in civil aircraft,ships, station oil wells and other fire-resistant requirements Sites, as well as thermal insulation,energy conservation, sanitation and other highrise building central air conditioning systems, such as hospitals, stadiums, schools, factories, airports and so on. It can also be applied to cold storage in refrigeration storage, insulation for industrial pipes and equipment such as petrochemicals, building partitions, exterior wall composite panels, ceilings,sound absorbing panels, etc.



• FEATURES
• Light, safe, decrease the load of the building.
• Easy to install, shorten the construction period.
• Protect environment, sandwich structure with
antioxidant surfaces.
• High performance in heat insulating, can
be served in both high and low temperature
environment.
• Fireproof, meet the National standard, makes
building safe.
• Soundproof, makes a quieter environment.
• No need to leave space for insulation material
installing, so that the story height can be reduced.
• Long service life up to 20 years, very low cost in
wastage and maintenance.
• Nice appearance.

TECHNICAL DETAILS
Length 3900mm/2900mm(other length are available)
Width 1200mm
Thickness range 20/25/30/40/50mm
Aluminum facing Aluminum foil, black Aluminum foil, Aluminum sheet,
Color steel sheet, Galvanized sheet.
Density 40-80 kg/m3(other density are available)
Thermal conductivity 0.021~0.030 W/(MK)
Water Absorption Rate 1.9%
Dimension Change Rate 0.3%
Working Temperature -100C to 150C
Combustion performance Class 0 (BS476 Part 6 and 7), Class A (ASTM E84)

1
Embossed Aluminum foil 80 or 60 micron
2
Phenolic foam
3
Embossed Aluminum foil 80 or 60 micron
1
Black Embossed Aluminum foil 80 or 60 micron
2
Phenolic foam
3
Embossed Aluminum foil 80 or 60 micron
1
Aluminum foil reinforced with a glass scrim
2
Phenolic foam
3
Aluminum foil reinforced with a glass scrim
1
Embossed Aluminum foil 80 or 60 micron
2
Phenolic foam
3
Aluminum sheet 200 micron
1
Embossed Aluminum foil 80 or 60 micron
2
Phenolic foam
3
Color steel sheet 200 micron
1
Embossed Aluminum foil 80 or 60 micron
2
Phenolic foam
3
Galvanized sheet 200 micron
